Mitra Rotomaster (Rotavator)

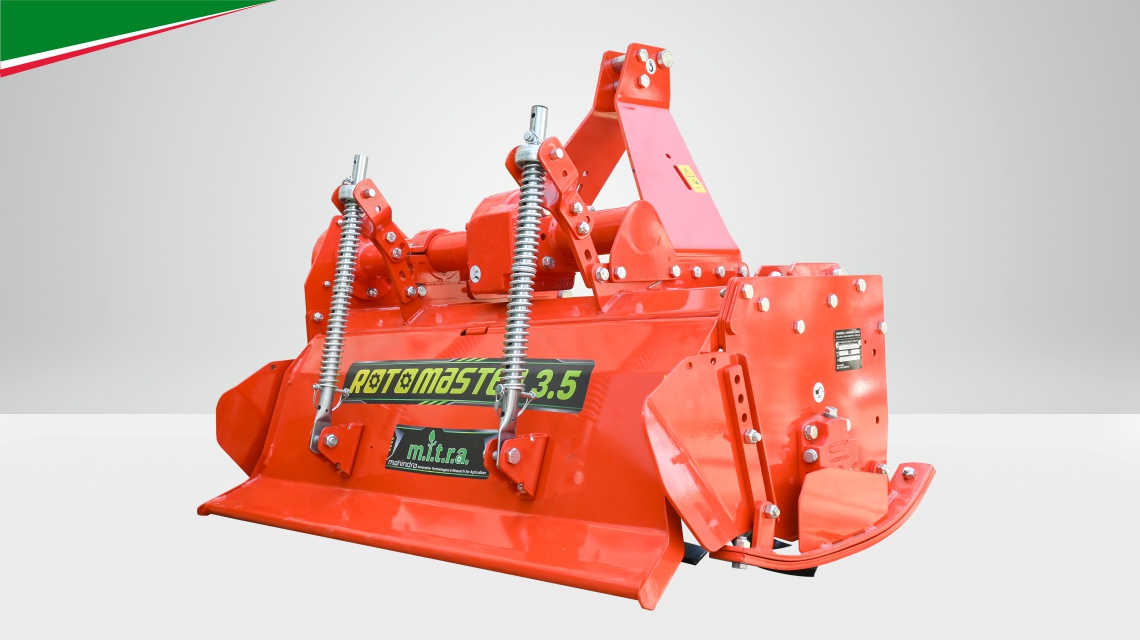

Tractor Mounted Rotavator (Rotomaster)

  • RPM: 540
  • Weight: 180/237 Kg
  • Depth: upto 5 inch
  • Tractor :- 18/24 HP & Above
  • Max working depth: 100 – 120 mm
  • Rotor Swing Diameter: 420 mm
Description

ROTOMASTER (Rotavator)

Mitra’s Rotomaster is a powerful tractor rotavator designed to deliver efficient and uniform soil preparation for all types of farms. This highly valuable machine works through PTO operation and uses rotating blades to finely pulverize the soil. Known for performing both primary and secondary tillage, the Rotomaster comes with a reliable single-speed gearbox that ensures smooth performance in every field condition.

To reduce tractor load and improve overall efficiency, the Rotomaster features a smart helical blade arrangement. Its 3-point linkage assembly is extremely durable, long-lasting, and built to handle tough farming tasks without breakage. Farmers can also adjust the bottom link width easily, allowing perfect compatibility with different tractors. Designed with a focus on fuel efficiency and effective soil pulverization, this implement delivers excellent results while keeping operating costs low.

For orchard owners, Mitra also offers Mini Rotavators that are ideal for working in smaller spaces. These compact models come in 3.5-feet and 4-feet sizes and are equipped with 20 or 24 high-quality boron steel blades. Suitable for tractors of 18 HP and above, they can achieve a working depth of up to 5 inches—higher than many other rotavators in the segment. The gear-drive system, along with a robust gearbox, ensures smooth PTO power transmission to the rotary shaft.

Mitra’s Rotavator is designed with farmer convenience in mind. It includes a replaceable bottom skid to reduce maintenance expenses and comes with a shear bolt safety mechanism to protect the machine from high torque and vibration. Whether used in open fields or orchards, the Rotomaster ensures superior soil preparation, making it a dependable choice for crop cultivation.

When compared to other machines in the market, Mitra’s Rotomaster stands out not only for its performance but also for its affordable price range. For farmers already using equipment like a Tractor Mounted Sprayer, the Rotomaster becomes a perfect addition to complete their farm preparation and spraying needs efficiently.

ROTOMASTER

BENEFITS

  • Uniform soil pulverization (up to 5 inch Depth)
  • Doorstep service and installation by the trained service engineer
  • Less load on tractor due to the ‘Helical blade arrangement

FEATURES

  • Heavy Duty Gear Drive & Structures – Low maintenance & longer life.
  • Adjustable Bottom Links – Compatible for 18HP & above the tractor.
  • Available in 20 and 24 Blades with 3.5 ft. and 4 ft. width respectively.

SPECIFICATION

Rotomaster

Parameter Rotomaster 3.5 ft Rotomaster 4.0 ft
Overall Length 710 mm 725 mm
Overall Width 1200 mm 1440 mm
Overall Height 945 mm 960 mm
Tilling Width 970 mm 1050 mm
Type of Blade L – Type C – Type
Tractor Power 18 HP 24 HP
3 Point Hitch Type Cat – 1 Cat – 1
Transmission Type Gear Gear
Max working depth 100 – 120 mm 100 – 120 mm
Rotor Swing Diameter 420 mm 420 mm
Drivelines safety device Shear Bolt Shear Bolt
Weight 180 Kg 237 Kg
