For selecting best air assisted sprayer for grape, pomegranate & orange orchard we need see following parameters of our plantation

1. Row – Row spacing, Canopy height & Density of canopy = according to this we can select the number of nozzles required to cover the whole canopy area and Optimum fan diameter which gives appropriate air velocity for penetration of chemical inside the dense canopy of the tree.

2. Turning Space= According to turning space availability we need to select a tractor trailed or tractor mounted machine, overall length of machine and capacity of sprayer.

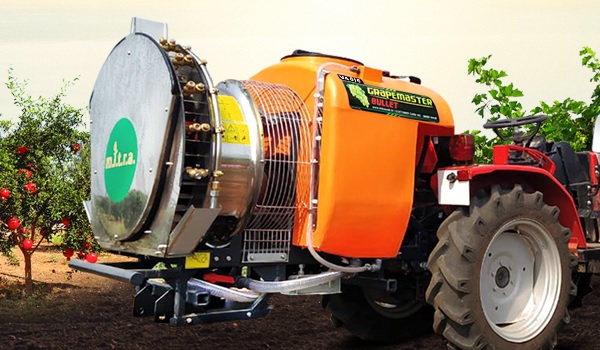

3. Soil type = According to soil type which is either black cotton, clay loam, Sandy loam, Stony we can select lightweight tractor mounted sprayer as Mitra Grapemaster Bullet 550 or heavy duty tractor trailed sprayer with bigger tyre as Airotec Turbo 600litre double fan.

4. Farm and plot size = According farm size we can select the sprayer tank capacity as 200 litre, 300 litre, 400 litre, 600 litre, 800 litre, 1000 litre, 1500 litre, 2000 litre

Air blast sprayer are specially designed & developed for spraying in orchard crops. Because of appropriately balanced high air velocity these sprayers help to penetrate the chemical in side the dense canopy of the tree and covers each and every leaf, branches & stem of the tree. Hence by using Air blast sprayer we get 100 % coverage while spraying operation. The high air velocity breaks the water droplet into the fine mist hence the results of pesticide are more precise and satisfactory to cure or prevent the diseases, fungus & pest.

Mitra tractor operated sprayer is specially designed for precise spraying operation in grape vineyards. The overall air balncing and equally distributed high air velocity for each nozzle results in outstanding coverage while spraying in grape vineyards. Mitra air assisted sprayer are equipped with specially developed ATR 60 nozzle tips which creates fine mist of water droplets while taking of PGR sprays. Plant growth Regulator come into the contact type chemical category, hence because of fine mist, small droplet size and outstanding coverage the grape farmers get 100% results of dipping by using Mitra tractor operated sprayer.

In orchard sprayers specially Air blast sprayers / air assisted sprayers required only 1 person for tractor driving and spraying operation and if we compare with manual spray, its required 2 to 4 persons for spraying operation.

Tractor operated Air assisted sprayers are operate at average forward speed of 3 to 5 Km/Hr So at this speed we can cover 1 acre land in 20 to 30 minutes depending on row -row spacing of orchard, the time required for spraying operation reduced drastically by using Tractor operated air assisted sprayers.

Tractor operated sprayers give best coverage in spraying operation, hence disease & pest prevention is 100%, its results in reduction in repetitive spraying rounds to prevent or cure the same disease & pest. Farmers get huge pesticides saving because of this, it also maintains the optimum MRL level for exporting of fruits.

Tractor operated orchard sprayer or blower is basically one kind of agricultural equipment which is used for pesticide spraying operation in grape vineyards, pomegranate & orange orchards etc. These sprayers are two types either tractor mounted or tractor trailed and taking power from tractor PTO ( power take off shaft ). These sprayers consist of a Diaphragm pump, fan, Gearbox or belt pulley and specially designed brass nozzles with Ceramic nozzle tips, which are operating at high pressure such as 20 to 40 Bar pressure.

TRACTOR OPERATED SPRAYER is suitable for orchard crops like Grape, Pomegranate, Orange, Kinnow, Apple, Mango, Drumstick, Guava, Dragon fruit, Custard apple, Litchi, Kiwi, Palm trees, date palm, Papaya, etc,

Agricultural sprayer or blower is a type of plant protection equipment used in cereal, pulses & horticulture crops for spraying operations like insecticides, pesticides, fungicides, herbicides spraying etc.

Mist blowers give best coverage in spraying operation, hence disease & pest prevention is 100%, its results in reduction in repetitive spraying rounds to prevent or cure the same disease & pest. Farmers get huge pesticides saving because of this, it also maintains the optimum MRL level for exporting of fruits that’s why grapes & pomegranate exporting farmers prefer mist blower or air blast sprayer for chemical application.

Air assisted sprayer is specially designed for precise spraying operation in grape vineyards & pomegranate. The overall air balancing and equally distributed high air velocity for each nozzle results in outstanding coverage while spraying in grape vineyards & pomegranate. Mitra air assisted sprayer are equipped with specially developed ATR 60 nozzle tips which creates fine mist of water droplets while taking off PGR sprays. Plant growth regulator come into the contact type chemical category, hence because of fine mist, small droplet size and outstanding coverage the grape farmers get 100% results of dipping by using Mitra tractor operated sprayer.

Air assisted sprayers give best coverage in spraying operation, hence disease & pest prevention is 100%, its results in reduction in repetitive spraying rounds to prevent or cure the same disease & pest. Farmers get huge pesticides saving because of this, it also maintains the optimum MRL level for exporting of fruits.

From all of above Air assisted sprayers improve the quality of fruits, maintain minimum residue level of pesticides and increase the yield and size of fruits.

In Air assisted sprayers agitators are provided inside the tank at bottom, in some sprayers both the agitators are located on the same side or in front of each other in cross direction. Cross direction agitation systems are more efficient for proper chemical & water mixing. Agitators are either mechanically operated or by using a water jet to continuous mixing of chemicals while spraying operation.

Agitation system helps to avoid chemical settling down at the bottom of the tank and also maintain a chemical to water ratio equal throughout the spraying operation in the field. This way agitation system maintains the equal concentration of chemicals which we want to spray on the trees.

Air assisted sprayers are equipped with specially designed brass nozzles with ceramic tip which have a fixed discharge rate at particular pressure. We need to calculate time required to cover our orchard plot at particular tractor forward gear & engine RPM. After the calculation of time we need to multiply the number of nozzles & discharge rate at fix pressure. From this exercise we can predict accurate Liter per acre chemical dose by using our air assisted sprayer.

Diaphragm pump is suitable for all types of tractor operated sprayer, because it has a low maintenance cost and it provides the continuous flow of spraying solution. Diaphragm pumps are positive displacement pumps which move liquids via the reciprocating action of diaphragm. They are highly reliable because they do not include internal parts that rub against each other. They also contain no sealing or lubricating oils within the pumping head, meaning there is no chance for mixing of oil & water

Air Assisted sprayer helps to protect the orange farm from disease and pest and help to increase the yield and quality of Orange. Its also help to saves chemical, labor and money.

For spraying Pesticides, insecticides & fungicides we need higher droplet size hence we need to prefer ceramic disc size 0.8, 1.0 , 1.2 mm as per the discharge required. For spraying micronutrient and PGR we need fine or very fine droplet size
