Mitra Agro Equipments manufacture sprayer machine for agriculture. It is one of the best Air blast Sprayer manufacturers in India, which is used for all types of crops in horticulture farming, such as Grapes, Pomegranates, Oranges, Mangoes, Guava, and Custard Apples. Mitra Sprayers come with a rear air conveyor system, which produces perfect air balancing with the highest air output and low power consumption. It is an air conveyor system used with stainless steel material which consists of a shell, fins, backplate, bottom baffle, and deflectors. Mitra’s Tractor Sprayer is provided with a compact size tank. The primary water tank has two variants 300 and 400 litres with a water tube level indicator. These models are ideal for farmers that have a tractor with a lower horsepower rating, such as 18HP and 20HP respectively.
This Tractor Trailed Sprayer has an attached high-pressure jet inside the main tank for uniform chemical mixing, thus providing equal chemical concentration throughout the spraying and basket mixture for preparing the chemical. Due to the 3-axis toe bar mechanism, Orchard Sprayer gives the lowest turning radius for turning in the low-spacing vineyards. This model uses a 3-way adjustable wheel axle, which can be used for adjusting the Track Width, Height, Tyre Reverse, and Forward. Airotec Turbo, an Air Assisted Sprayer, has a compact dimension compared to other imported sprayers. The most important benefit of this tractor-operated sprayer is that it’s equipped with a manually operated controller, giving the accurate delivery of chemicals while spraying.
Spraying solutions are filtered with the help of a Suction filter (Primary) and Brass line filter (Secondary) and can finally pass through the high-quality Italian brass nozzles. Mitra Agro Equipment has taken care of the safety by providing safety devices like Rubber coupling, which reduces the vibration and jerk coming from the tractor. The pressure relief valve automatically opens at 40 bar pressure to protect the pump from any damage due to excessive pressure. The rear bumper protects the shell assembly from damage.
Mitra’s Tractor Blower works on the tractor PTO power, transmitted by a wide-angle PTO shaft to the machine. This shaft is connected between the diaphragm pump to the tractor PTO shaft as the power gets transferred to a 2-speed gearbox, i.e., low-high and neutral, with 1:4 and 1:5 gear ratios. Hot-dip galvanized chassis for long life and prevention from rusting, and similarly, scrapper, side guards, bottom plate, and rear bumper are processed by a hot-dip galvanizing process.
- Government subsidy available
- Loan facility available with attractive interest rate
- Doorstep Service
- Uniform Coverage
- Best crop protection
- Proven chemical saving
- Proven labor saving
- 1-year warranty
FEATURES - 300 L
- Lowest turning radius
- Lowest fuel consumption
- Lowest tractor hp required that is 18HP & above
- Manual Controller: 5-mode controller & 2-way nozzles provide accurate delivery of chemicals
- Safety Devices: Innova rubber coupling & pressure relief value
- Tank: HDPE – High Density Polythelene
- Agitator: for proper agitation of chemical at the time of spraying
- Tyre position adjustment: Track width, height, tyre position forward & reverse
- Scrapper: for removing mud from tyre

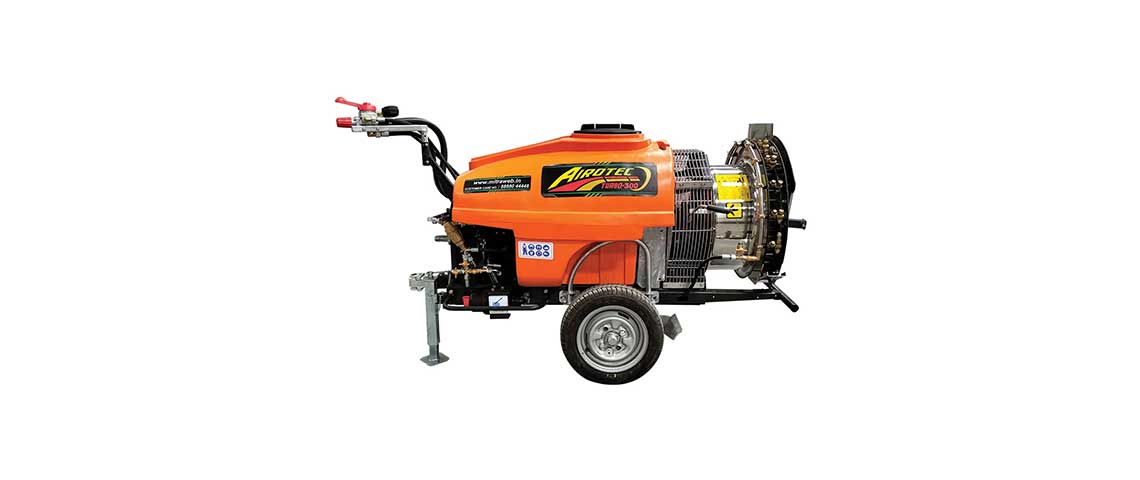

Airotec Turbo Series
Mitra Provide Variety of Sprayers.
Which Sprayer Suits your needs ?
Horticulture Crop Spraying Machine
Product Explanation Videos
Product Services Videos
Product Running Videos
Airotec 400 With Mahindra Jivo Tractor
Airotec Turbo 300L with Mitsubishi Tractor
