Mitra Agro Equipment’s is one of the best Manufacturers of the tractor-operated sprayer in India, which is used for all types of crops in horticulture farming, such as Grapes, Pomegranates, Oranges, Mangoes, Guava, and Custard Apples. Mitra Low Volume Sprayers come with a rear air conveyor system, which produces perfect air balancing with the highest air output and low power consumption. It is an air conveyor system used with stainless steel material which consists of a shell, fins, backplate, bottom baffle, and deflectors. Mitra’s Tractor Sprayer is provided with a compact size tank. The tank is having a 600 and 800lit main water tank with a water tube level indicator. These models are useful for those farmers having a tractor around 24-27HP power can easily use this model.
This Tractor Trailed Sprayer has an attached high-pressure jet inside the main tank for uniform chemical mixing, thus providing equal chemical concentration throughout the spraying and basket mixture for preparing the chemical. Due to the 3-axis toe bar mechanism, Orchard Sprayer gives the lowest turning radius for turning in the low-spacing vineyards. This model uses a 3-way adjustable wheel axle, which can be used for adjusting the Track Width, Height, Tyre Reverse, and Forward. Airotec Turbo, an Air Assisted Sprayer, has a compact dimension compared to other imported sprayers. The most important benefit of this tractor operated sprayer is that it’s equipped with a manually operated controller, giving the accurate delivery of chemicals while spraying.
Spraying solutions are filtered with the help of a Suction filter (Primary) and Brass line filter (Secondary) and can finally pass through the high-quality Italian brass nozzles. Mitra Agro Equipment has taken care of safety by providing safety devices like Rubber coupling, which reduces the vibration and jerk coming from the tractor. The pressure relief valve automatically opens at 40 bar pressure to protect the pump from any damage due to excessive pressure. The rear bumper protects the shell assembly from damages.
Mitra’s Tractor Blower works on the tractor PTO power, transmitted by a wide-angle PTO shaft to the machine. This shaft is connected between the diaphragm pump to the tractor PTO shaft as the power gets transferred to a 2-speed gearbox, i.e., low-high and neutral, with 1:4 and 1:5 gear ratios. Hot-dip galvanized chassis for long life and prevention from rusting, and similarly, scrapper, side guards, bottom plate, and rear bumper are processed by a hot-dip galvanizing process
Tractor Operated Sprayer
- Government subsidy available
- Loan facility available with attractive interest rate
- Doorstep Service
- Uniform Coverage
- Best crop protection
- Proven chemical saving
- Proven labour saving
- 1-year warranty
- High air output with perfect air balancing at both side with lowest power consumption
- Best for operations in low spacing vineyard
- Manual Controller – 5-mode controller & 2-way nozzles provide accurate delivery of chemicals
- Safety Devices – Innova rubber coupling & pressure relief valve
- Tank – HDPE anti chemical coating on inner surface
- Agitator – for proper agitation of chemical at the time of spraying
- Tyre position adjustment – Track width, height, forward & reverse position
- Scrapper – for removing mud from tyre
- Airotec turbo 600L and 800L models are also available in double fan

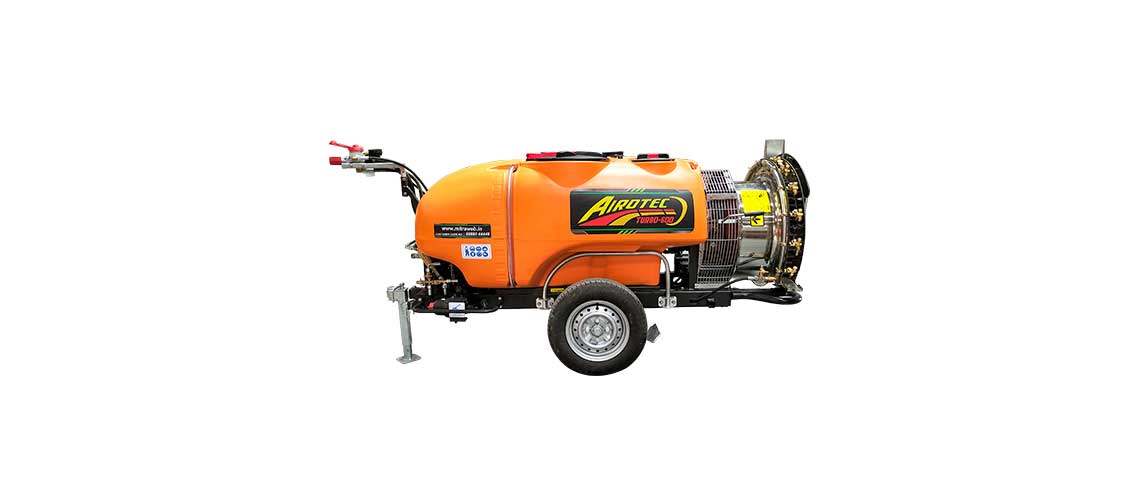

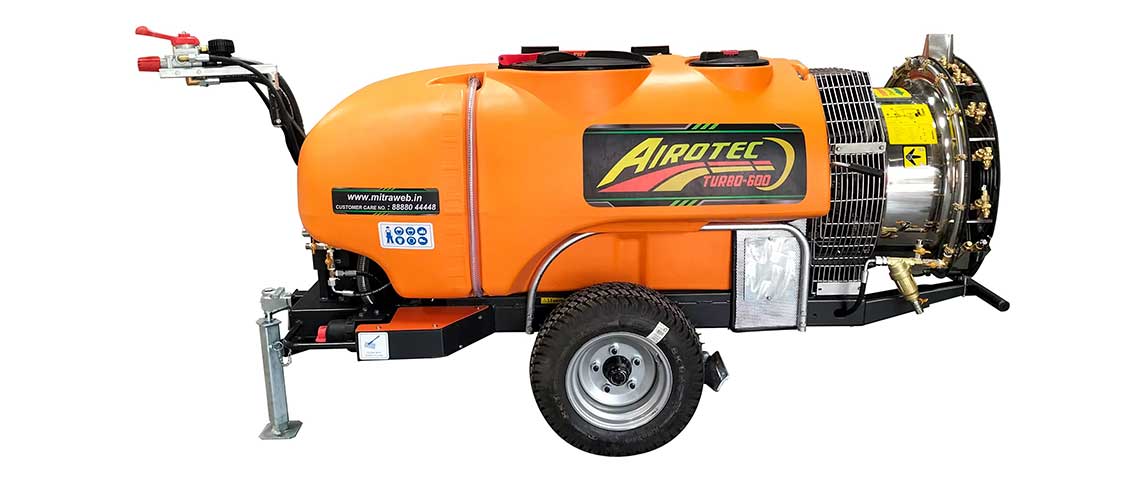

Airotec Turbo Series
|Parameter||AIROTEC Turbo 600 L||AIROTEC Turbo 800 L|
|Tank||600 Litre||800 Litre|
|Pump||75 LPM Diaphragm||75 LPM Diaphragm|
|Nozzles||12 Nozzles||12/14 Nozzles|
|Air Output||32 m/sec||32/36 m/sec|
|Fan||616 mm||616/712 mm|
|Tractor HP||24 HP||27 HP|
|Gearbox||2 Speed+1 Neutral||2 Speed+1 Neutral|
Mitra Provide Variety of Sprayers.
Which Sprayer Suits your needs ?
Tractor Operated Sprayer Machine
Product Explanation Videos
Product Services Videos
Product Running Videos
Tractor Operated Sprayer
Airotec Turbo with Mahindra Jivo [Airotec in Grapes]
Airotec Turbo 600 With john Deere Tractor [Airotec in custard apple]
Airotec Turbo with Kubota [Airotec in moringa]
Airotec Turbo 600L [Airotec in Pomegranate]
Tractor Operated Sprayers Testimonials
Airotech Turbo In Grapes [Marathi]
Airotec 600 in Pomegranate[Marathi]
Airotec 600 in Pomegranate[Gujarati]
Airotec 600 in Orange[Marathi]
Airotec 600 in Mango[Hindi]
Airotec 600 in Grapes[English]
Airotec 600 in Grapes[Kannada]
Air assisted sprayer useful breaking the water droplet size into the thousand of micron due to the high air velocity.
We can use air assisted sprayer in orchards like grapes, orange, pomegranate, etc.
Air-assisted sprayer save labour, chemical & time of the farmer and it has good coverage in orchards.
Airotec turbo is one of the example of tractor trailed sprayer which is specially developed for orchards farm.
We can you the tractor trailed sprayer anytime we want to, we just require tractor, chemical and water and we are ready for spraying in orchards.
