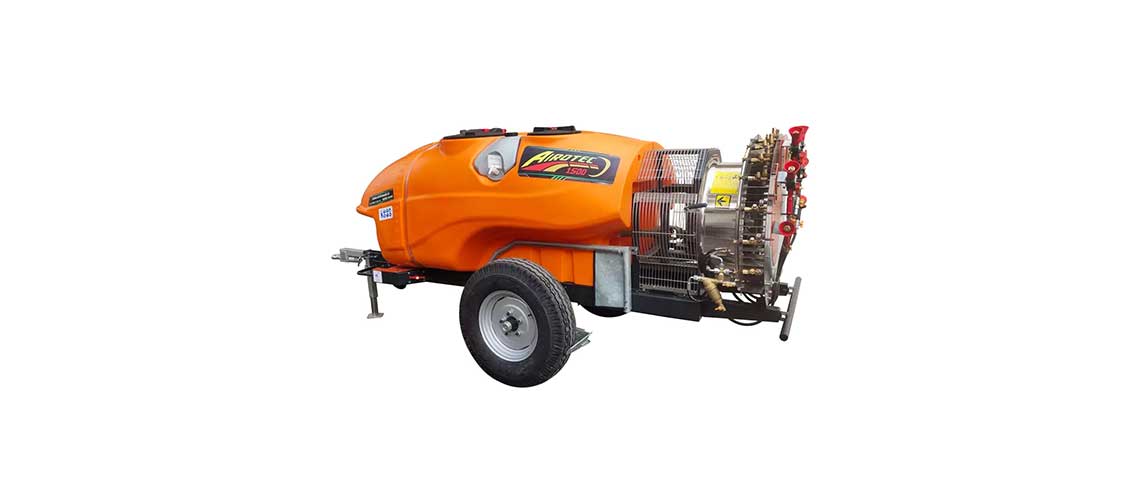

Mitra Airotec 1500

Tractor Trailed Sprayer, Air Blast Sprayer, Orchard Sprayer

Suitable Crops: Pomegranate, Mango (high-density plantation), Orange, Sapota, Guava

  • Tank: 1500 Litre
  • Pump: 75 LPM Diaphragm
  • Fan: 712 mm
  • Nozzles: 14 Nozzles + 4 Handgun
  • Air Output: 36 m/sec
  • Tractor :- 40 HP Above
Description

Tractor Power Sprayer

Mitra Agro Equipments offers the best power sprayer for agriculture in India, which is used for all types of crops in horticulture farming, such as Grapes, Pomegranates, Oranges, Mangoes, Guava, and Custard Apples. Mitra Sprayers come with a rear air conveyor system, which produces perfect air balancing with the highest air output and low power consumption. It is an air conveyor system used with stainless steel material which consists of a shell, fins, backplate, bottom baffle, and deflectors. Mitra’s Tractor Sprayer is provided with a compact tank having 10 mm wall thickness. The tank is made up of 3 compartments that include main tank, rinsing tank, and clean water tank with a dual water tube level indicator.

This Tractor Trailed Sprayer has an attached high-pressure jet inside the main tank for uniform chemical mixing, thus providing equal chemical concentration throughout the spraying and basket mixture for preparing the chemical. This model uses a 3-way adjustable wheel axle, which can be used for adjusting the Track Width, Height, Tyre Reverse, and Forward. Airotec Turbo, an Air Assisted Sprayer, has a compact dimension compared to other imported sprayers. The most important benefit of this tractor operated sprayer is that it’s equipped with a manually operated controller, giving the accurate delivery of chemicals while spraying.

Spraying solutions are filtered with the help of a Suction filter (Primary) and Brass line filter (Secondary) and can finally pass through the high-quality Italian brass nozzles. Mitra Agro Equipment has taken care of safety by providing safety devices like Chain Coupling or Rubber coupling (As per tractor HP), which reduces the vibration and jerk coming from the tractor. The pressure relief valve automatically opens at 40 bar pressure to protect the pump from any damage due to excessive pressure. The rear bumper protects the shell assembly from damages. Mitra’s Tractor Blower works on the tractor PTO power, transmitted by a wide-angle PTO shaft to the machine. This shaft is connected between the diaphragm pump to the tractor PTO shaft as the power gets transferred to a 2-speed gearbox, i.e., low-high and neutral, with 1:4 and 1:5 gear ratios. Hot-dip galvanized chassis for long life and prevention from rusting, and similarly, scrapper, side guards, bottom plate, and rear bumper are processed by a hot-dip galvanizing process.

Tractor Power Sprayer

BENEFITS

  • Government subsidy available
  • Loan facility available with attractive interest rate
  • Doorstep Service
  • Proven Chemical and labor saving
  • Proven Dipping Results
  • Uniform coverage giving best crop protection
  • Doorstep service and Installation by the trained service engineer
  • 1-year warranty with free service*
  • 5-mode controller and two way nozzles provides accurate delivery of chemicals
  • Agitators provided for constant chemical concentration while spraying
  • Diaphragm pump to eliminate pulsation in sprayer

FEATURES

  • It has multipurpose applications like spraying & dipping in all orchards and vineyard
  • It is available in 1000L, 1500L & 2000L variants
  • It works on 34 HP and above tractors
  • 2 speed + 1 neutral gearbox
  • Rear air conveyor : Highest air output with perfect air balancing and lowest power consumption
  • Lowest Turning radius
  • 3 way adjustable tyre : Track width, Height & Tyre position adjustment
  • It is also available in double fan variant

SPECIFICATION

Tractor Power Sprayer

Parameter Airotec Turbo 1500
Tank 1500 Litre
Pump 75/100 LPM Diaphragm
Nozzles 14/16 Nozzles + 4/6Handgun
Air Output 36/40 m/sec
Fan 712/815 mm
Tractor HP 40/50 HP & Above
