Grapemaster Eco

Grapemaster Eco is similar product as the Bullet sprayer except tank that is tractor-mounted sprayer.

Suitable Crops: Grapes, Pomegranate, Orange, Kinnow, Mango, Guavae.

  • Pump: 55 LPM Diaphragm
  • Fan: 550 mm
  • Nozzles: 10 Nozzles
  • Air Output: 22 m/sec
  • Gear Box : 2 Speed+ 1 Neutral
  • Tractor :- 18 HP Above

Grape Sprayer

Best Grape Sprayer

For Your Grape Farm or Vineyard

When it comes to ensuring exceptional grape quality then it is important to choose the BEST GRAPE SPRAYER for your grape farm or vineyard.

We have to appropriately select the spray equipment for effective, efficient, and environmentally friendly application of chemicals to our grapes farm. A technically correct and advanced decision-making process is required when selecting sprayers for orchards and vineyards rather than field crops—especially when spraying for insects and diseases within the canopy. The most important factors for selecting a vineyard or orchard sprayer are that it delivers the required application rate, sprays droplets of the proper size on the target uniformly, and that it minimizes the loss of spray on the ground and in the air.

grape sprayer

Grapemaster ECO

Grape Sprayer

grape sprayer

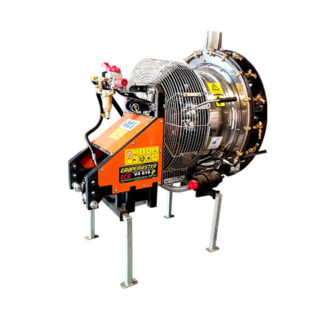

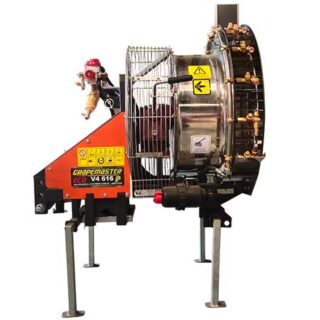

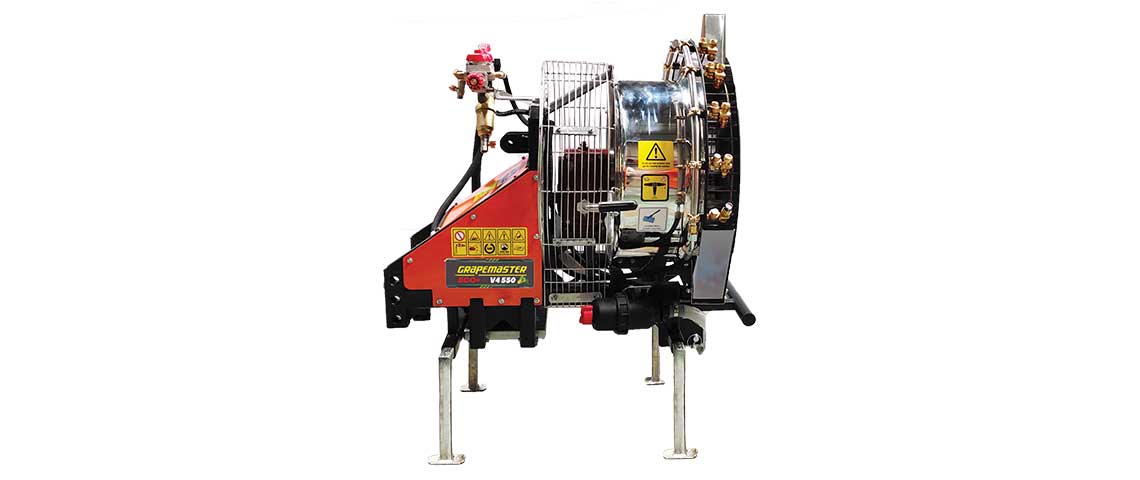

Mitra’s Grapemaster Eco is an intricately designed high performance grape sprayer which fulfills high expectations of vineyard owners.

Grapemaster Eco is similar to the Bullet sprayer except that it is a tractor-mounted sprayer. This grape sprayer unit comes with a rear air conveyor, which provides perfect air balancing with the highest air output and low power consumption.

An air conveyor system made with stainless steel material consists of a shell, fins, backplate, bottom baffle, and deflectors. We can attach an extra trailer tank to this grape sprayer such as 200/300/400/600 Ltr capacity which is useful for the farm, where the turning radius is constrained. In this model we can provide an agitation system for spraying water solution.

Mitra’s Grapemaster Eco Sprayer is designed in such a way that it can overcome the problem of lowest turning radius in the low-spacing vineyards. It is directly mounted over the tractor with the help of specially designed mounting plates.

Grape Sprayer


  • Government Subsidy Available.
  • Loan facility available.
  • Uniform coverage.
  • Best crop protection.
  • Proven chemical saving.
  • Proven Labour saving.
  • Doorstep service.
  • 1-year warranty


  • High air output with perfect air balancing at both side with lowest power consumption.
  • Best for operations in low spacing vineyards.
  • Extra trailer tank can be attached as per tractor HP& turning space availability.
  • Stainless steel shell assembly.
  • Manual Controller: 5-mode controller & 2-way nozzles provide accurate delivery of chemicals.
  • Safety Devices: Pressure relief valve to protect the pump from high pressure.


Mitra Grapemaster Eco Series

Model Grapemaster Eco (550mm) Grapemaster Eco (616mm)
Pump 55 LPM Diaphragm 65 LPM Diaphragm
Fan 550 mm 616 mm
Nozzle 10 Nozzles 12 Nozzles
Air Output 22 m/sec 28 m/sec
Gear Box 2 Speed+ 1 Neutral 2 Speed+ 1 Neutral
Tractor HP 18 HP & Above 24 HP & Above
Graper Sprayer – Mitra Agro

Mitra Agro Equipments has taken care of the safety of this grape sprayer by providing safety devices like a rear bumper to protect the shell assembly from any accidents. A pressure relief valve automatically opens at 40 bar pressure to protect the pump from excessive pressure damage.

The benefits of this Tractor Operated grape sprayer are that it is equipped with a manually operated controller, giving the accurate delivery of chemicals while spraying. The Spraying Solutions are filtered with the help of a Suction Filter (Primary) and Brass Line Filter (Secondary), and finally, it passes through the high-quality brass nozzles.

Mitra’s excellence in vineyard & grape sprayers have helped a number of farm owners to improve their yield and yield quality. If you are looking for spraying needs for your grapes farm then feel free to contact us. Our Grape sprayers are of premium quality & comes at affordable prices with on-site service.
